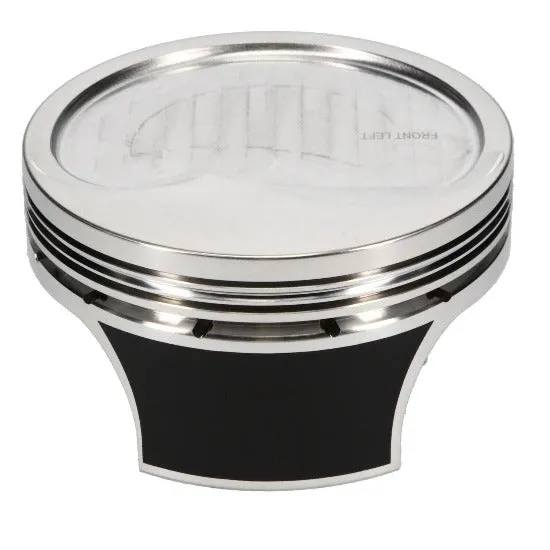

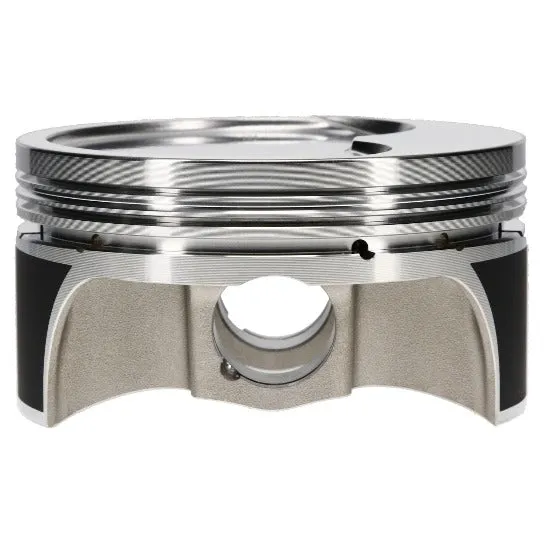

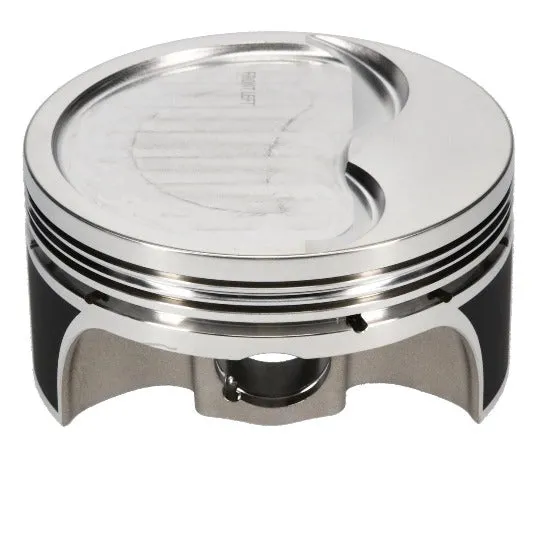

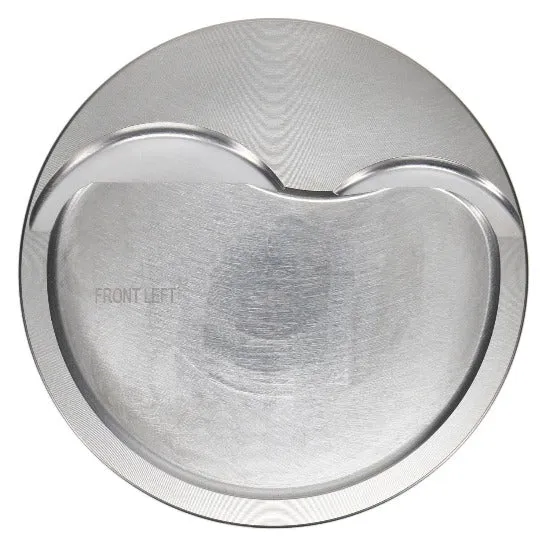

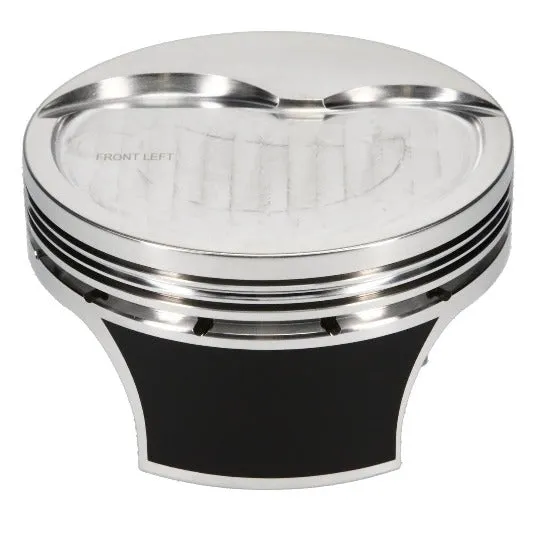

JE / SRP professional 4.010" bore piston with rings & upgraded .200" Wall Wrist Pins 329359 - PU
Suit GM / Holden Stroker LS2 engine with 4.000" stroke crankshaft and 6.125" conrods (crankshaft and conrods sold separately)
PRICE IS PER PISTON, QUANTITY 8 REQUIRED FOR LS ENGINE.
Individual pistons will be ordered in ex USA, approx 1-2 weeks from order date providing they have them in stock. Individual piston price surcharge applies.
DESCRIPTION:
Piston, 4032, Inv Dome/Dish, 4.010 Bore, 1.115 CD, 0.927, Pin Dia.
SRP Professional pistons combine durability, technology and performance. Forged from 4032 aluminum, they have minimal thermal expansion making them perfect for a high-performance daily driver or street/strip application.
All SRP Pro pistons include premium ring sets, wrist pins and locks.
| Bore (in) | 4.010" |
|---|---|
| Bore (mm) | 101.85 |
| Top Compression Ring Thickness | 0.0480 |
| Second Compression Ring Thickness | 0.0600 |
| Oil Ring Thickness | 0.149 |
| Forging Type | FSR |
| Volume (cc) | -10.00 |
| Series | SRP Professional |
| Piston Head Type | Inv Dome/Dish |
| Pin Diameter (IN) | 0.927 |
| Compression Height | 1.115 |
| Make | CHEVROLET |
| Wrist Pin Style - floating or press fit | Floating |
| Wall Type | CHAMFERED |
| Wall Thickness (IN) | Upgraded .200" |
| Ringset Part Number | JG3101-4010-4 |
| Ring Brand | ProSeal |
| Ringset Included | Yes |
| Retainer Thickness | 0.073 |
| Retainer Lock Style | Wire Lock |
| Retainer Lock Part Number | 927-073-MW |
| Retainer Diameter (IN) | 0.927 |
| Piston Pin Inside Diameter | 0.627 |
| Piston Pin Material | 5115 LOW CARBON STEEL, CASE HARDENED |
| Piston Material | 4032 |
| Piston Pin Length (IN) | 2.250 |
| Piston Avg Wt | 405 |
| Pin Offset | Yes |
| Pin Brand | JE Pistons |
| Pin Part Number | 927-2250-15-51C |
| Pin Included | Yes |
| Pin Diameter (mm) | 23.55 |
| Oil Rail Support Part Number (If Required) | 4000-162 |
| Oil Rail Support Included | Yes |
| Oil Rail Radial Wall | 0.162 |
| Deck Clearance | 0.000 |
| Brand | SRP |
