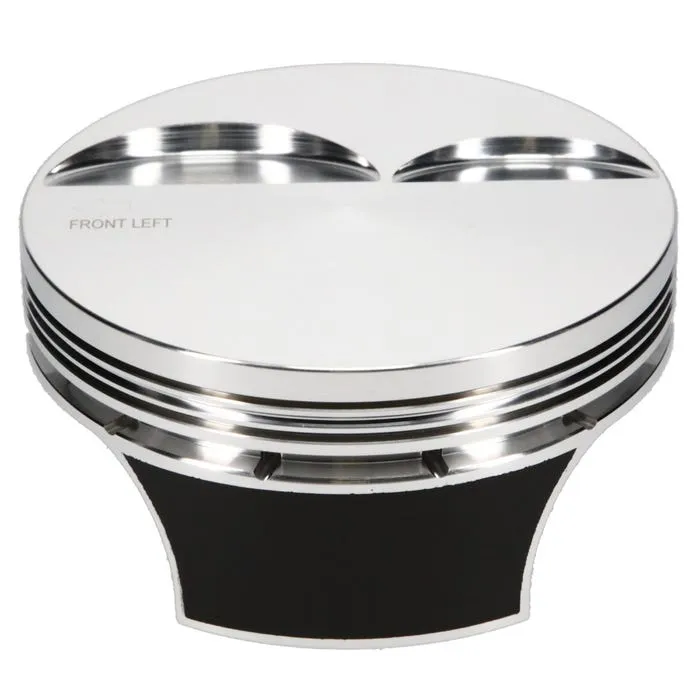

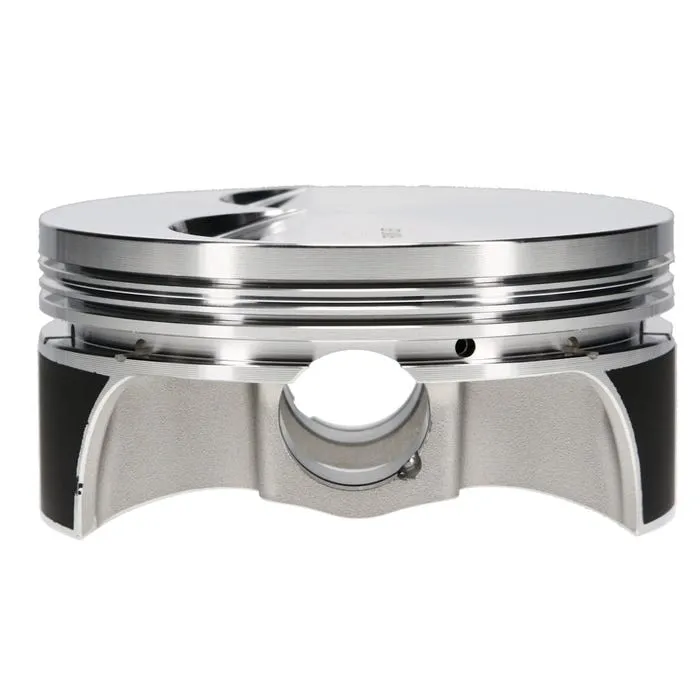

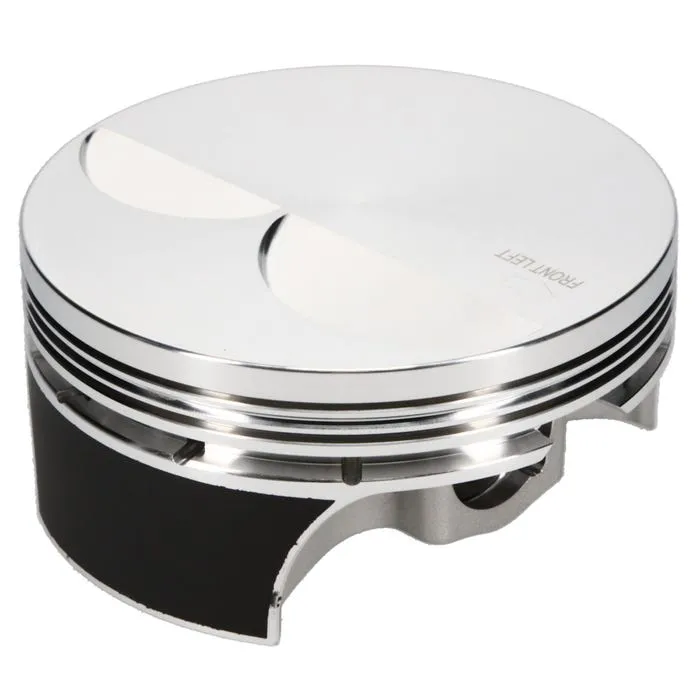

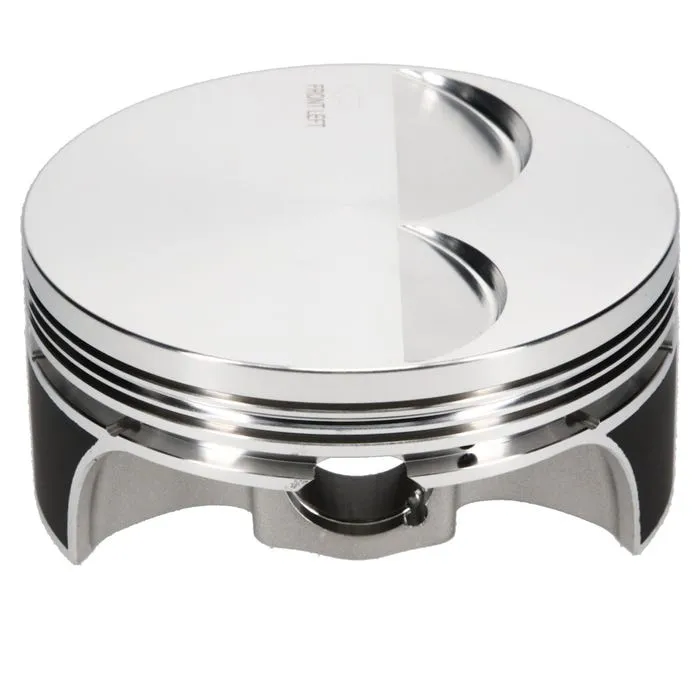

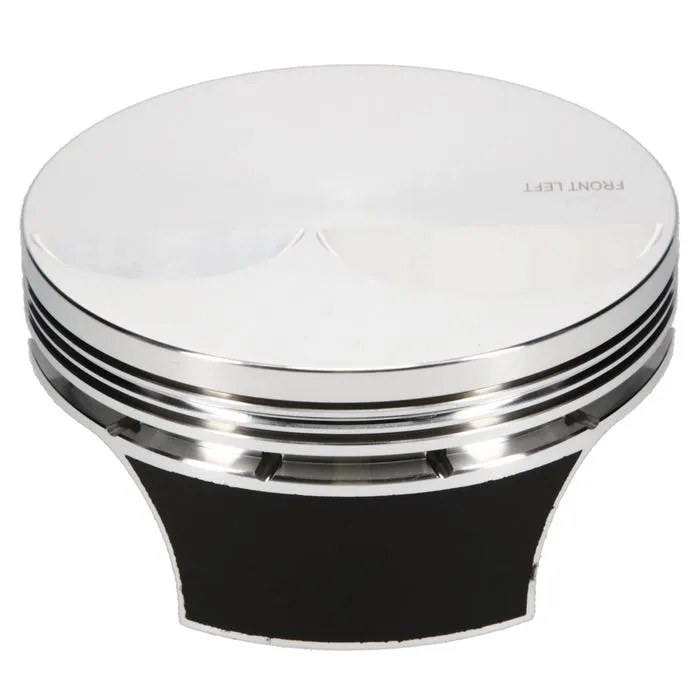

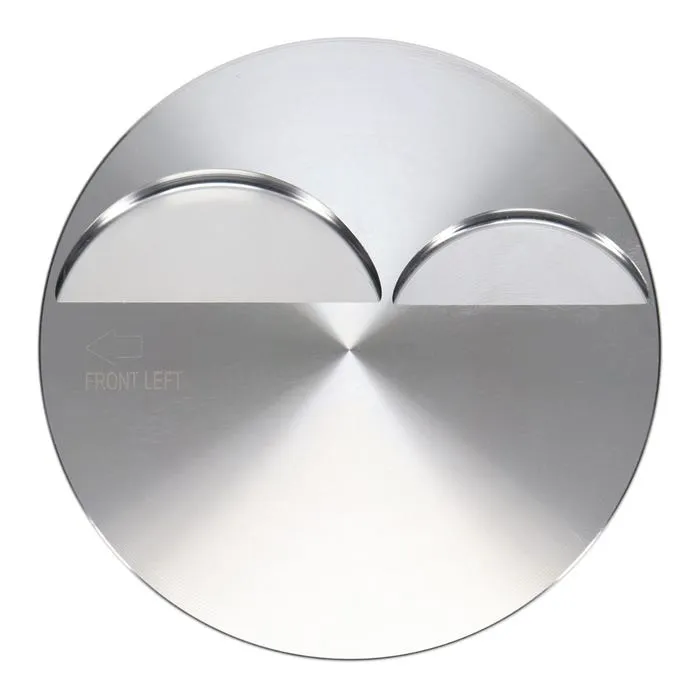

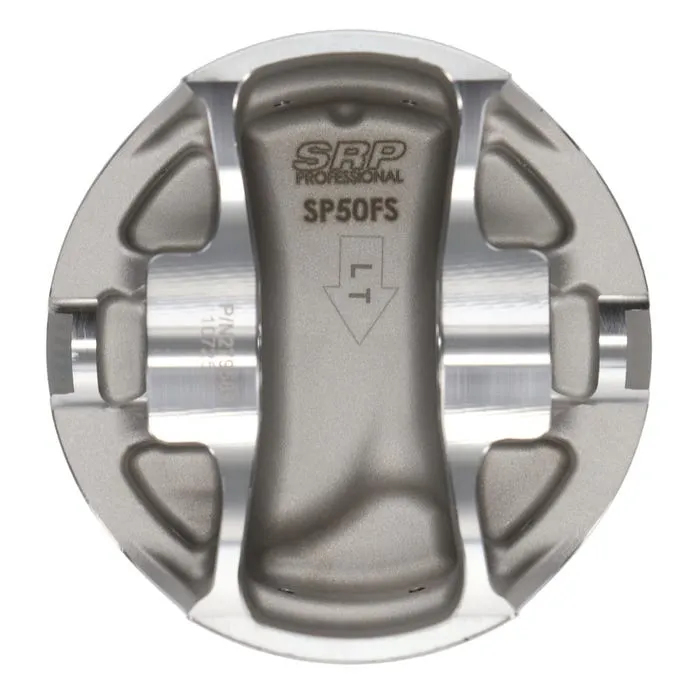

SRP Pro 4032, Chevrolet, LS Gen III/IV, 4.070 in. Bore, 1.115 CD, Flat Top
Notice: Product Images may differ from the actual product. Image may be a representation of this item.
JE Pistons SRP line is proud to offer huge performance for the price. Forged from strong, 4032 aluminum alloy material, SRP pistons blend strength with affordability, offering an excellent performance bargain for performance rebuild and street/strip applications. (some applications in 2618)
PRICE IS PER PISTON, QUANTITY 8 REQUIRED FOR V8 ENGINE.
Individual pistons will be ordered in ex USA, approx 1-2 weeks from order date providing they have them in stock. Individual piston price surcharge applies.
Specifications:
| Bore Diameter | 4.070 |
|---|---|
| Compression Height | 1.115 |
| Piston Head Type | Flat |
| Piston Volume | -5 |
| Cylinder Head | LSX/L92 12 DEG |
| Piston Pin Outside Diameter | 0.927 |
| Piston Pin Length | 2.250 |
| Piston Pin Material | 5115 |
| Ringset Included | Yes |
| Top Compression Ring Thickness | 0.048 |
| Second Compression Ring Thickness | 0.06 |
| Oil Ring Thickness | 0.149 |
| Piston Material | 4032 |
| Forging Type | FSR |
| Piston Avg Weight | 405 |
| Pin Wall Thickness | 0.150 |
| Product Market | Domestic |
| Product Types | Engine Piston |
