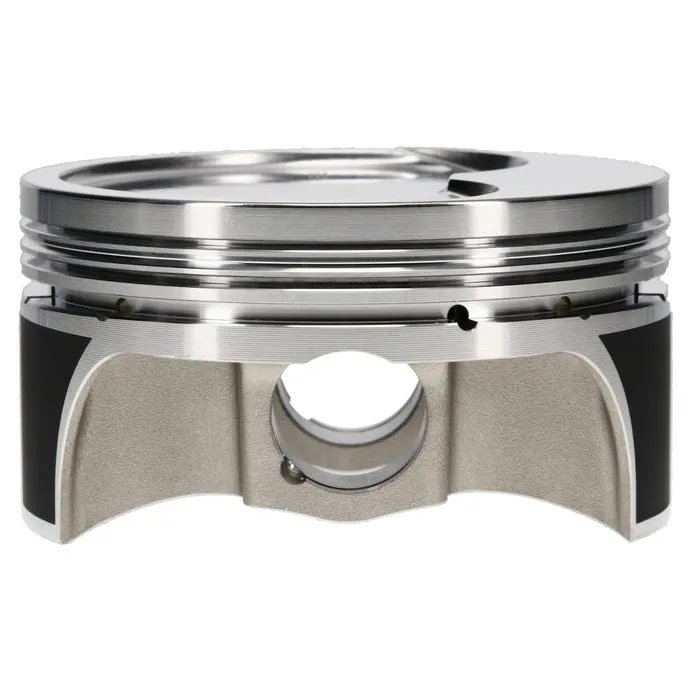

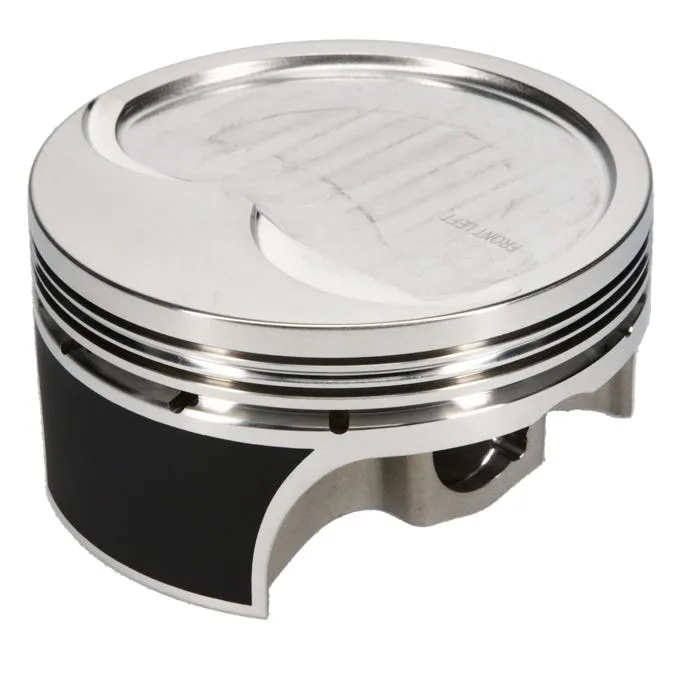

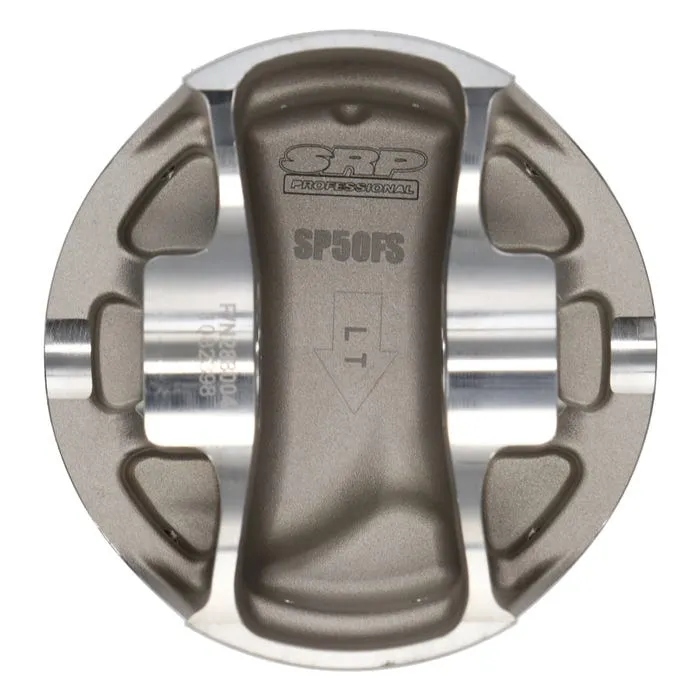

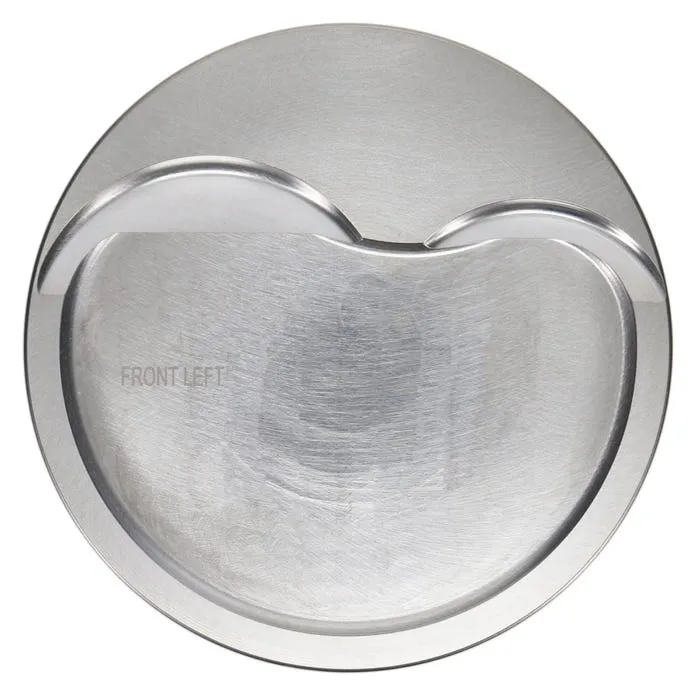

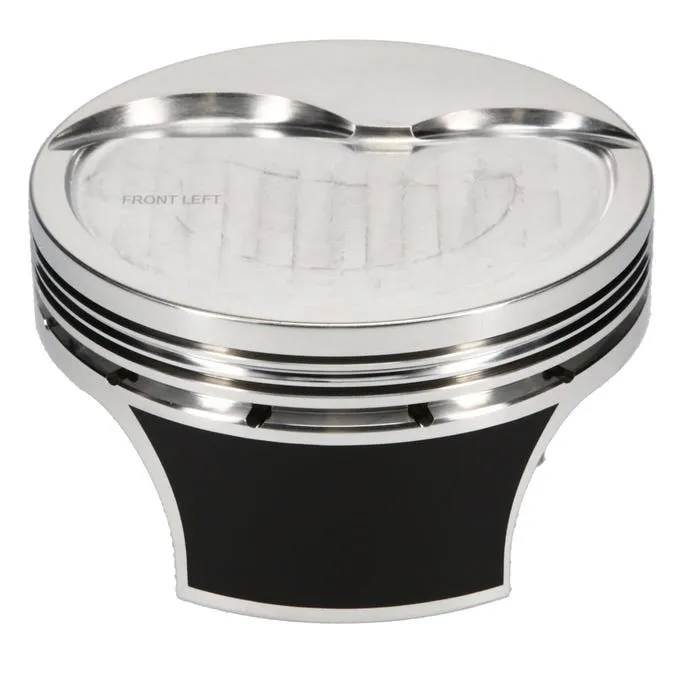

SRP Pro 2618, Chevrolet, LS Gen III/IV, 4.030 in. Bore, 1.115 CD, Inverted Dome/Dish
Notice: Product Images may differ from the actual product. Image may be a representation of this item.
JE Pistons SRP Pro 2618 line expands on the premium features of the SRP Pro series with the addition of extremely strong, 2618 forged aluminum material. All piston kits include gas-nitrided, carbon-steel pistons rings, pins, and locks. This line represents maximum piston strength at minimum cost.
PRICE IS PER PISTON, QUANTITY 8 REQUIRED FOR V8 ENGINE.
Individual pistons will be ordered in ex USA, approx 1-2 weeks from order date providing they have them in stock. Individual piston price surcharge applies.
Specifications:
| Bore Diameter | 4.030 |
|---|---|
| Compression Height | 1.115 |
| Piston Head Type | Dish |
| Piston Volume | -10 |
| Cylinder Head | LSX/L92 12 DEG |
| Piston Pin Outside Diameter | 0.927 |
| Piston Pin Length | 2.250 |
| Piston Pin Material | 5115 |
| Ringset Included | Yes |
| Top Compression Ring Thickness | 0.048 |
| Second Compression Ring Thickness | 0.06 |
| Oil Ring Thickness | 0.149 |
| Piston Material | 2618 |
| Forging Type | FSR |
| Piston Avg Weight | 406 |
| Pin Wall Thickness | 0.170 |
| Product Market | Domestic |
| Product Types | Engine Piston |
