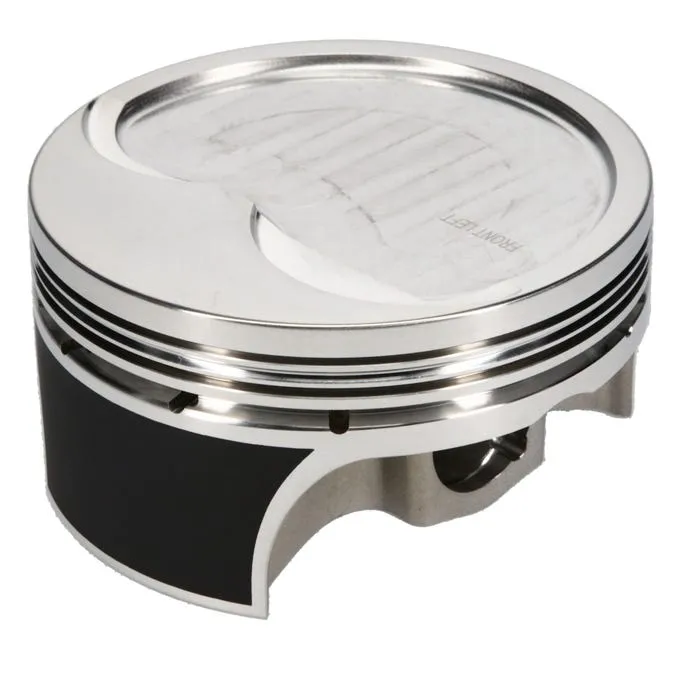

SRP PISTON PRO LS3
- 4.070" Bore
- 1.050" Compression Distance
- 12cc Dish
- Suit 4.125" Stroke Crank & 6.125" Rod
- Includes piston 305729, pin 927-2250-15-51C, locks 927-073-MW , rings JG31F8-4070-0
SRP Professional pistons combine durability, technology and performance. Forged from 4032 aluminum, they have minimal thermal expansion making them perfect for a high-performance daily driver or street/strip application. All SRP Pro pistons include premium ring sets, wrist pins and locks.
PRICE IS PER PISTON, QUANTITY 8 REQUIRED FOR LS ENGINE.
Individual pistons will be ordered in ex USA, approx 1-2 weeks from order date providing they have them in stock. Individual piston price surcharge applies.
Notice: Product Images may differ from the actual product. Image may be a representation of this item.
| Bore Diameter | 4.070 |
|---|---|
| Compression Height | 1.050 |
| Piston Head Type | Inverted Dome |
| Piston Volume | -12 |
| Cylinder Head | LSX/L92 12 DEG |
| Piston Pin Outside Diameter | 0.927 |
| Piston Pin Length | 2.250 |
| Piston Pin Material | 5115 |
| Ringset Included | Yes |
| Top Compression Ring Thickness | 0.048 |
| Second Compression Ring Thickness | 0.060 |
| Oil Ring Thickness | 0.150 |
| Piston Material | 4032 |
| Forging Type | FSR |
| Piston Avg Weight | 398 |
| Pin Wall Thickness | 0.150 |
| Product Market | Domestic |
| Product Types | Engine Piston |
